Step and Servo Motor Controller System
Any Combination of Stepper and Servo Motors

ALLEGRA Series



Hardware Reference Manual in PDF
Programming Examples
More Info...
Other Motor Controller and Driver Products

JMC Series

ANDANTE Series

ICAD Series

FIGARO Series

ALLEGRA Series

GLORIA Series

ADAGIO Series

SONATA Series

PRESTO Series

SMDS Series

Related Products

Motorized Linear Actuators

Motorized XY Stages

Motorized Linear Lift Stages

Motorized Rotary Stages

Combined Linear-Rotary Stages

Motorized Goniometer Stages

Motorized   Multi-axis Stages

Features
  • Plug-and-Play

  • Quick and Easy to Install

  • Very Compact and Easy to Use

  • Low Power Consumption, High Torque Motors, High Speed Capability

  • Easy Programming Language, No Compiler or Assembler Required

  • Programmable, Teachable or Manual Control

  • Different Modes of Operation:

    • Host Controlled, PLC, C/C++, Visual Basic, LabVIEW™, MATLAB

    • Joystick / Trackball Controlled

  • Optional Quadrature Encoder Feedback

  • Built-in Self Test

  • Available to Drive Stepper, DC Servo, Brushless, and Voice Coil Motors

  • Optional Gyroscope Stabilization

  • Totally Integrated Solution

  • Evaluation Unit Is Available upon Request

Software

Stepper Motor Driver

  • Up to 7 Amp Phase Current

  • +12 VDC to +80 VDC

  • 2 to 256 Micro-steps per Step Resolution

  • Size 8 to 42 Motors

  • Auto Current Reduction

DC and Three Phase Brushless Motor Driver

  • Up to 40 Amps Phase Current

  • +18 VDC to +80 VDC

Communication Interface

  • RS-232 Interface

  • Optional Ethernet Interface

  • Optional USB Interface

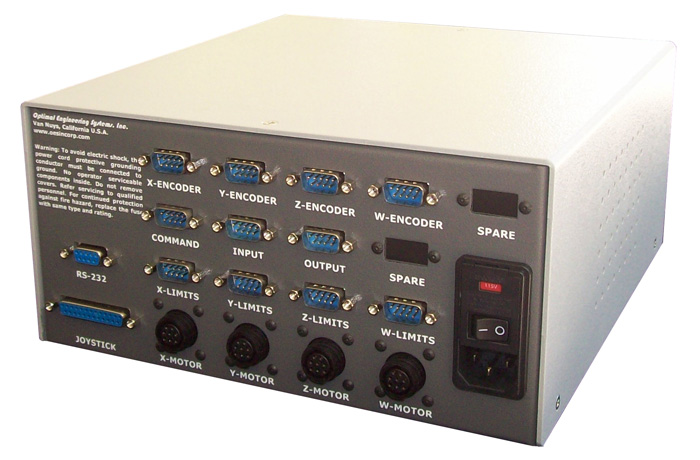

The ALLEGRA series of Stepper Motor control system is an easy-to-use, plug-and-play and cost effective solution for Stepper Motor control applications.  It may be used as a stand-alone unit or may be commanded by an external device.

Each system includes the power supplies, the motion controller card,
the micro-stepper and/or servo motor drivers

This Motor control system supports up to 4 axes of motion, 16 TTL / CMOS inputs, 16 TTL / CMOS outputs,  analog inputs, and  optional optical encoder inputs.

The system may be controlled in different ways;

1) Stand-alone Operation of Motor Control System

In this mode, the controller does not need an external device such as a PC to operate. The controller is programmed in a simple programming language. The code is developed, downloaded to the controller, run and saved in the controller's non-volatile memory using the supplied Integrated Development Environment (IDE) software.

2) Externally Control Operation of Motor Control System

In this mode, the external host such as a PC, micro-controller or PLC sends a series of commands to the controller via the RS-232 serial port. The controller processes and performs the incoming commands and responds with proper messages.

3) Operating the Motor Control System Using the Supplied Control Panel

The supplied user friendly Control Panel software allows the user to set-up the module quickly. The operator is able  to move the mechanism to different positions by pressing the corresponding buttons of the Control Panel or by using the joystick and/or trackball.

1) Teach Mode

The motion profile may be recorded using the "Teach Mode" capability of the software. This profile may be uploaded to the controller to repeat the same exact Stepper Motor.

2) Profile Entry Mode

The motion parameters are manually entered in the control panel by typing the desired values in the corresponding fields, or may be read from a text file.



The system can also be operated using an analog joystick or a trackball. The speed of the motor is proportional to the tilt angle of the joystick or the rotational speed of the trackball.

More Info...



Ordering Information


Part No. Description Amount
ALLEGRA-1-STPR-01 Single-axis Programmable Stepper Motor Control System
Click to Get a Quote
ALLEGRA-2-STPR-01 Two-axis  Programmable Stepper Motor Control System
Click to Get a Quote
ALLEGRA-3-STPR-01 Three-axis Programmable Stepper Motor Control System
Click to Get a Quote
ALLEGRA-4-STPR-01 Four-axis Programmable Stepper Motor Control System
Click to Get a Quote

Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz



Part No. Description Amount
ALLEGRA-1-SRVO-01 Single-axis Programmable DC Servo Motor Control System Click to Get a Quote
ALLEGRA-2-SRVO-01 Two-axis  Programmable DC Servo Motor Control System Click to Get a Quote
ALLEGRA-3-SRVO-01 Three-axis Programmable DC Servo Motor Control System Click to Get a Quote
ALLEGRA-4-SRVO-01 Four-axis Programmable DC Servo Motor Control System Click to Get a Quote

This series is suitable for DC servo motors.

Servo Motor Drivers:
Up to 4.0 Amps Phase Current

Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz



Part No. Description Amount
ALLEGRA-1-BLDC-01 Single-axis Programmable Brushless DC Servo Motor Control System Click to Get a Quote
ALLEGRA-2-BLDC-01 Two-axis  Programmable Brushless DC Servo Motor Control System Click to Get a Quote
ALLEGRA-3-BLDC-01 Three-axis Programmable Brushless DC Servo Motor Control System Click to Get a Quote
ALLEGRA-4-BLDC-01 Four-axis Programmable Brushless DC Servo Motor Control System Click to Get a Quote

This series is suitable for Brushless DC servo motors.

Servo Motor Drivers:
Up to 20.0 Amps Maximum Phase Current

Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz


For a different configuration, please contact us for a prompt quotation.
