Motion Control Console
MCC Series



Motion Controller Comparison Table
Other Motor Controllers and Motor Driver Products
Related Products

Motorized Linear Actuators

Motorized XY Stages

Motorized Linear Lift Stages

Motorized Rotary Stages

Combined Linear-Rotary Stages

Motorized Goniometer Stages

Motorized   Multi-axis Stages

Features
  • Compact

  • Plug-and-Play

  • Quick and Easy to Install

  •  Easy to Use

  • Low Power Consumption

  • 4-Line LCD

  • 32-button Keypad

  • Outputs STEP and DIRECTION Signals per Axis

  • Different Modes of Operation

     1) Keypad with Display

    2) Optional Joystick

  • Optional Quadrature Encoder Feedback




Capabilities
  • Set Acceleration

  • Set Velocity

  • Set Position

  • Absolute Move

  • Relative Move

  • Find Home

  • Reset Position Counter

  • Go to Position Zero

  • Joystick

  • Stop All Motors

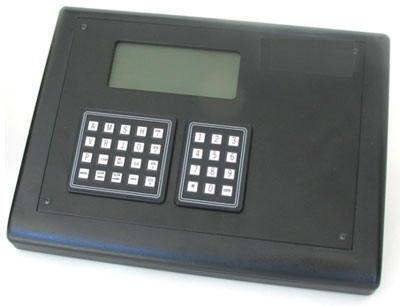

The MCC series of stepper and servo motor controllers is designed
to control up to three axes of motion for the user without prior motion control experience.

It integrates a motion control card and operator interface in one package. The user friendly interface allows the user to operate the controller without needing a PC, PLC, host controller or programming.

These are the mode of operations: Set Acceleration, Set Velocity, Set Position, Absolute Move, Relative Move, Find Home, Reset Position Counter, Go to Position Zero, Joystick Operation and Stop All Motors.

This module requires external motor drivers.

The module can also be operated using an analog joystick or a trackball. The speed of the motor is proportional to the tilt angle of the joystick or the rotational speed of the trackball.

Operating Reference Manual in PDF


Ordering Information

Single-axis

Part No. Description Amount
MCC-1-01 Single-axis Motion Controller Console, Outputs are Step and Direction Signals Click to Get a Quote

Dual-axis

Part No. Description Amount
MCC-2-01 Dual-axis Motion Controller Console, Outputs are Step and Direction Signals per Axis Click to Get a Quote

Triple-axis

Part No. Description Amount
MCC-3-01 Triple-axis Motion Controller Console, Outputs are Step and Direction Signals per Axis Click to Get a Quote
