Stepper Motor, Size 11, 15 oz-in, 200 Steps per Revolution

Model

Configuration

Holding Torque Current per Phase Voltage Resistance per Phase Inductance per Phase

Rotor Inertia

oz-in

N-m



Amp Volts Ohm mH

oz-in2

Kg-m2



STPM-11-200-15-W

Full Coil

15.6

0.11

0.67

6.2

9.2

5.6

0.098

18X10-7

Half Coil



12.7

0.09

0.95

4.4

4.6

1.4

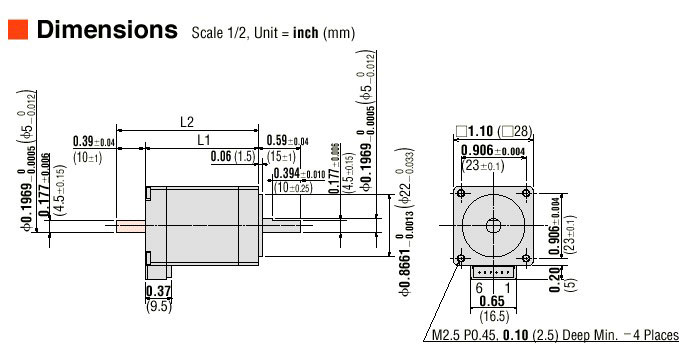

Dimensions

L1 = 2.03 “ (51.5 mm)
L2 = 2.42” (61.5 mm)
Weight = 0.44 lb (0.2 Kg)

Speed Vs. Torque Characteristics

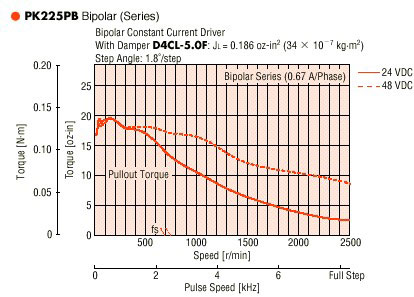

Full Coil

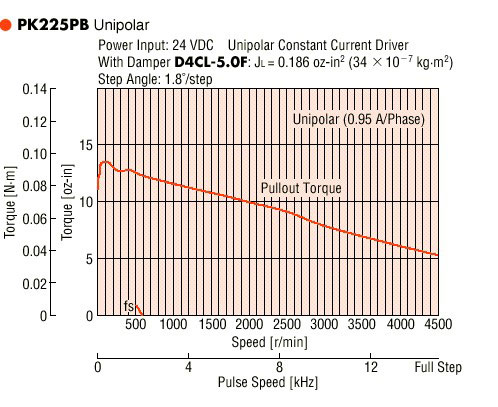

Half Coil
