Stepper Motor, Size 34, 440 oz-in, 200 Steps per Revolution

Model

Holding Torque Current per Phase Voltage Resistance per Phase Inductance per Phase

Rotor Inertia

oz-in

N-m



Amp Volts Ohm mH

oz-in2

Kg-m2



STPM-34-200-440-W

440

3.10



6.3 1.40 0.24 1.5

7.70

1400X10-7

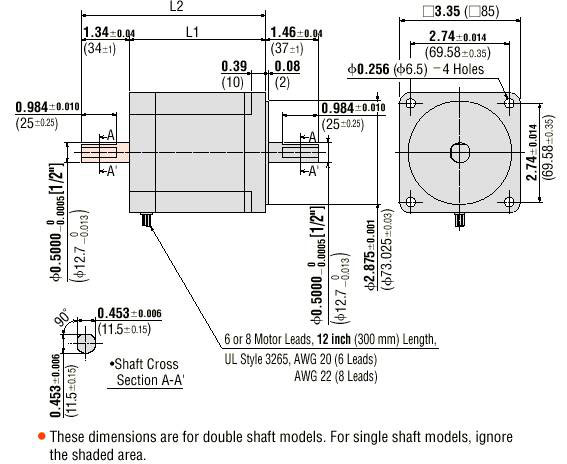

Dimensions
L1 = 2.60“ (66 mm)
L2 = 3.94” (100 mm)
Weight = 3.7 lb (1.7 Kg)

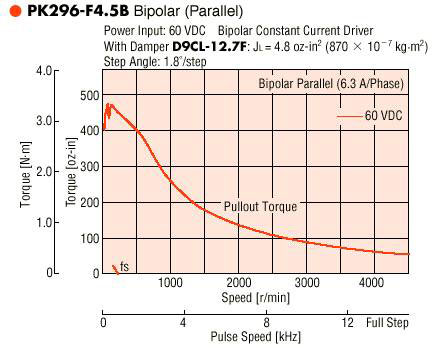

Speed Vs. Torque Characteristics
