Manual Linear Positioning Stage



Home > Manual Stages > Adapting Plates > Adaptor Plate Stages

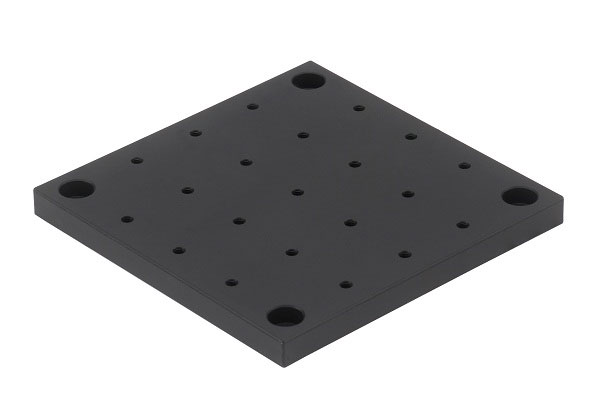

Manual Linear Positioning Stage Picture


Specifications

Model No. A B Hole numbers with thread T E F Material Surface
finish
M4hole
   AIB-4-120-120 120 120 21 10 10 10 Aluminum alloy Black anodized

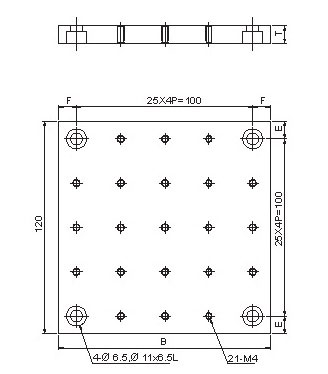

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
AIB-4-120-120 ADAPTING PLATE - M4 THREAD 120x120mm Table 21 holes Click to Get a Quote
