Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin Stainless Steel Stage

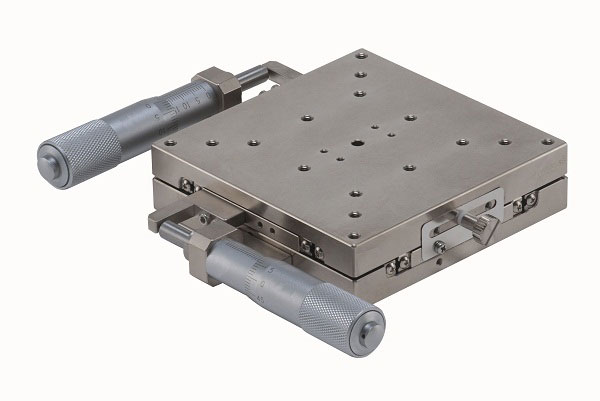

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 100 X 100 mm has a body weight of 2 kgf.

It provides side type of feed position.

The maximum load of this linear table is 25 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
  MYW100-SS 100 by 100 XY-axis Side +/-12.5 10 μm 3 μm 25 2 stainless steel 440C Electroless nickel plating

Mechanical Drawing

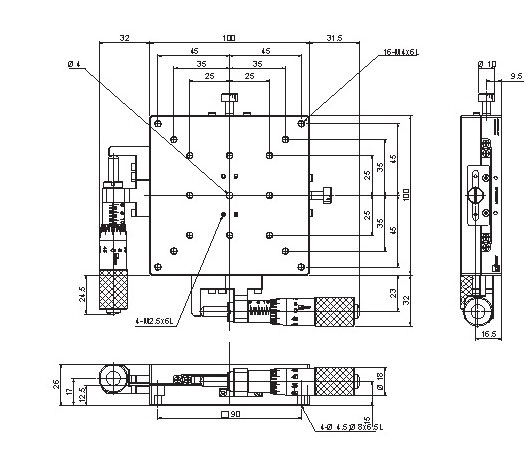

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MYW100-SS Manual Stage, Linear Ball Stainless Steel Stages, Super Thin Stainless Steel Stage, Range of Travel +/-12.5 mm Click to Get a Quote
