Manual Linear Ball Stainless Steel Super Thin Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin Stainless Steel Stage

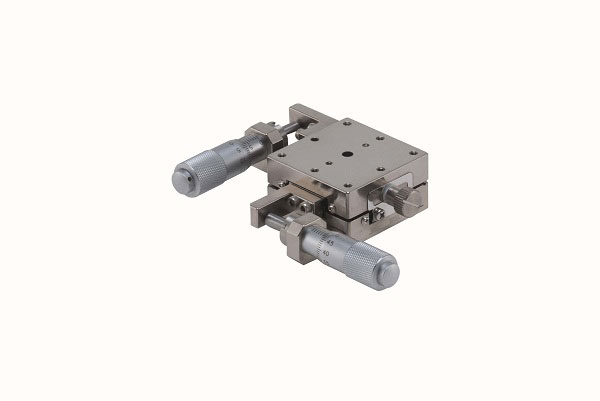

Manual Linear Positioning Stage Picture

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 40 X 40 mm has a body weight of 0.64 kg.

It provides side type of feed position.

The maximum load of this linear table is 19 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

  Unit: mm
Part No.. Table
Axis Feed
Travel Distance Micrometer
minimum reading
Movement accuracy
Load Capacity
Material Surface


40 by 40 XY-axis Side +/-6.5 10 micron 3 micron 19 0.64 stainless steel 440C Electroless nickel plating

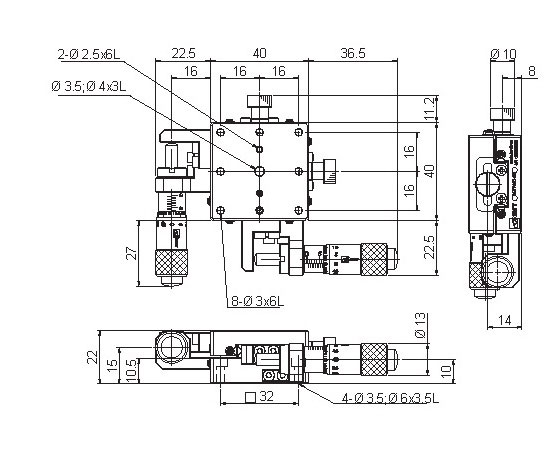

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MYW40-SS Manual Stage, Linear Ball Stainless Steel Stages, Super Thin Stainless Steel Stage, Range of Travel +/-6.5 mm Click to Get a Quote
