Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin X-axis

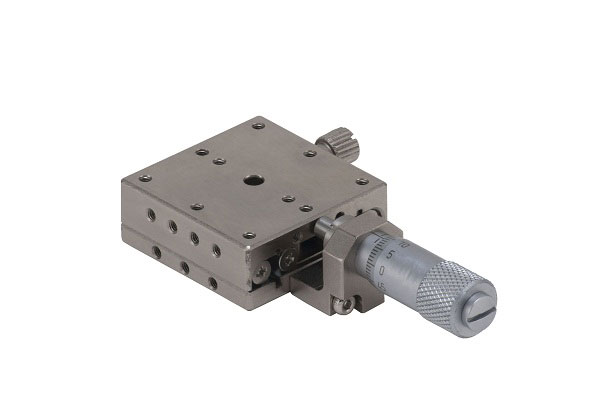

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 30 X 30 mm has a body weight of 0.95 kgf.

It provides central type of feed position.

The maximum load of this linear table is 2 kgf.

The distance of travel is +/- 3.2 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MX30-SC

30 mm by 30 mm X Central +/-3.2 3 μm 2 0.95 stainless steel 440C Electroless nickel plating 10 μm

Mechanical Drawing

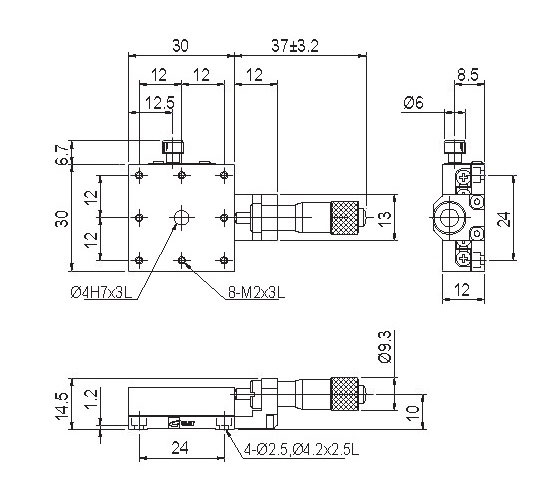

Manual Linear Positioning Stage Mechanical Drawing
MX30-SC

Manual Linear Positioning Stage Mechanical Drawing
MY30-SC

Manual Linear Positioning Stage Mechanical Drawing
MY30-SS

 Ordering Information

Part No. Description Amount
MX30-SC Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm Click to Get a Quote
MX30-SS Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm Click to Get a Quote
MY30-SC Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm Click to Get a Quote
MY30-SS Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm Click to Get a Quote
