Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin X-axis

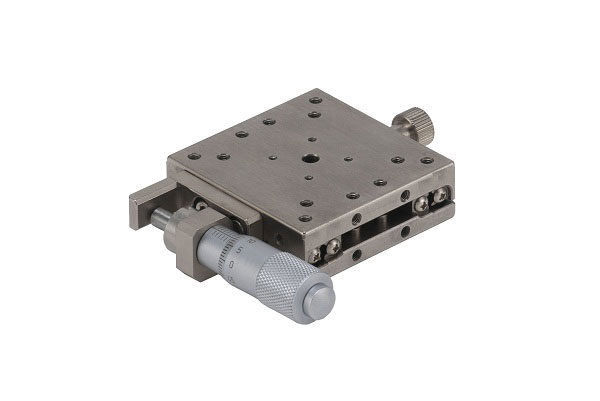

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 50 X 50 mm has a body weight of 0.28 kgf.

It provides side type of feed position.

The maximum load of this linear table is 15 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MX50-SS

50 mm by 50 mm X Side +/-6.5 3 μm 15 0.28 stainless steel 440C Electroless nickel plating 10 μm

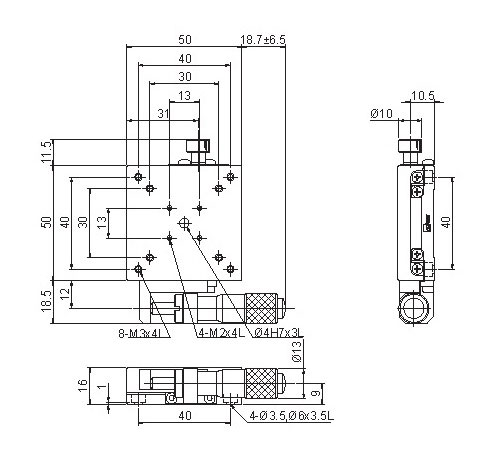

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MX50-SS

 Ordering Information

Part No. Description Amount
MX50-SS Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-6.5 mm Click to Get a Quote
