Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Stage XY-axis

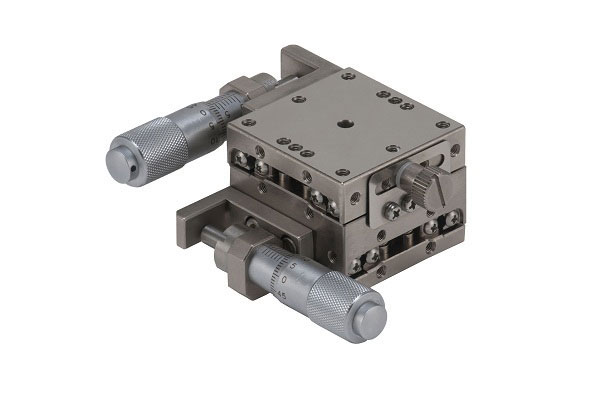

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 40 X 40 mm has a body weight of 0.46 kgf.

It provides side type of feed position.

The maximum load of this linear table is 9.7 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MY40-SS

40 by 40 XY axes Side +/-6.5 10 μm 3 μm 9.7 0.46 stainless steel 440C Electroless
Nickel plating

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MY40-SS

 Ordering Information

Part No. Description Amount
MY40-SS Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-6.5 mm Click to Get a Quote
