Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Z-axis Stages

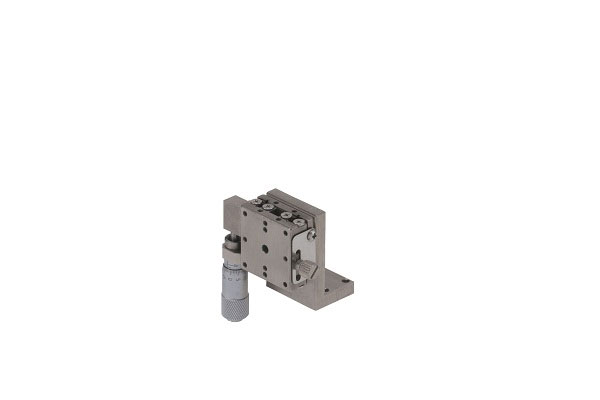

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 25 X 25 mm has a body weight of 0.09 kgf.

The maximum load of this linear table is 1.0 kgf.

The distance of travel is +/- 3.2 mm.

The movement accuracy straightness are straightness:3 Ám, vertical yawing: 30 and parallel yawing: 25.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing

 MZL25-SS

25 by 25 10 μm 1.0 0.09 stainless steel 440C Electroless nickel plating +/-3.2 3 μm 30 25

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MZL25-SS

 Ordering Information

Part No. Description Amount
MZL25-SS Manual Stage, Linear Ball Stage, Stainless Steel Z-axis Stage, Travel Distance +/-3.2 mm Click to Get a Quote
