Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Z-axis Stages

Manual Linear Positioning Stage Picture

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 80 X 80 mm has a body weight of 1.2 kgf.

The maximum load of this linear table is 5.0 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness are straightness:3 Ám, vertical yawing: 25 and parallel yawing: 15.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing

 MZL80-SS

80 by 80 10 μm 5.0 1.2 stainless steel 440C Electroless nickel plating +/-12.5 3 μm 25 15

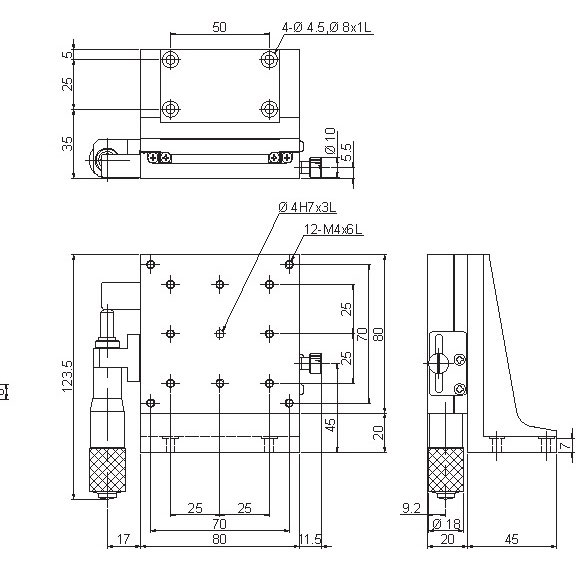

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MZL80-SS

 Ordering Information

Part No. Description Amount
MZL80-SS Manual Stage, Linear Ball Stage, Stainless Steel Z-axis Stage, Travel Distance +/-12.5 mm Click to Get a Quote
