Manual Crossed Roller XYZ Axis Positioning Stage

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual XYZ positioning stage is made of stainless steel with electroless nickel plating.

The table size is 100 x 100 mm has a body weight of 4.99 Kgf.

The maximum load of this super thin table is 5 Kgf.

The movement accuracy is Straightness 5Ám ,Vertical yawing 25" and Parallel yawing 15".

Model No. Table
Axis Load capacity
Material Surface
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXYZ100-S 100 by 100 XYZ 5 4.99 SUS 440C Electroless nickel plating 5μm 25" 15"

Mechanical Drawing

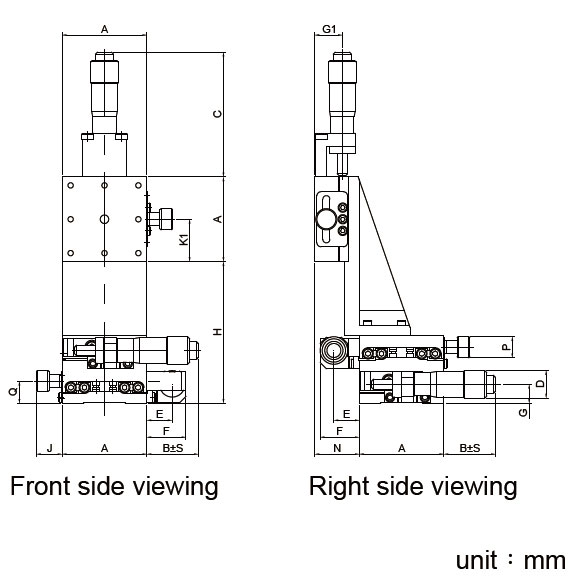

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZ100-S Linear Ball Bearing Stage XYZ Axis 100x100mm Table with Travel 25mm Click to Get a Quote
