Manual Crossed Roller XYZ Axis Positioning Stage

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual XYZ positioning stage is made of stainless steel with electroless nickel plating.

The table size is 25 x 25 mm has a body weight of 0.21 Kgf.

The maximum load of this super thin table is 1 Kgf.

The movement accuracy is Straightness 5Ám ,Vertical yawing 30" and Parallel yawing 30" 25".

Model No. Table
Axis Load capacity
Material Surface
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXYZ25-S 25 by 25 XYZ 1 0.21 SUS 440C Electroless nickel plating 5μm 30" 30" 25"

Mechanical Drawing

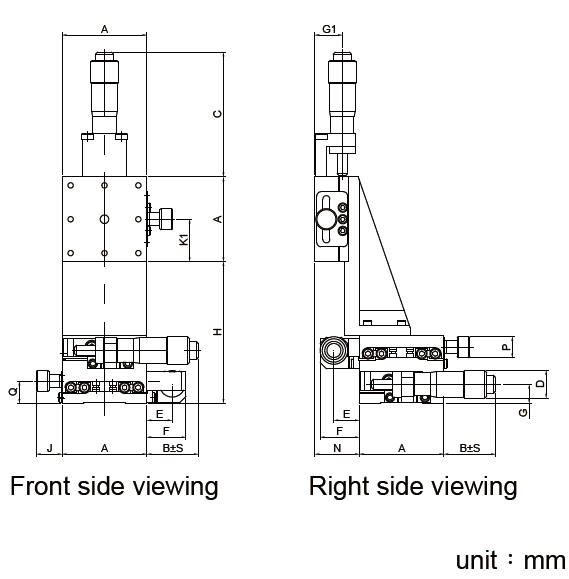

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZ25-S Linear Ball Bearing Stage XYZ Axis 25x25mm Table with Travel 6.4mm Click to Get a Quote
