Manual Crossed Roller XYZ Axis Positioning Stage
MXYZ25-A

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Triple-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XYZ-axis positioning stage is made of aluminum alloy with an black anodized coating.

The table size is 30 x 30 mm has a body weight of 0.2 Kgf.

The maximum load of this super thin table is 1 Kgf.

The movement accuracy is Straightness 5Ám ,Vertical yawing 25" and Parallel yawing 15".

Specifications
Model No. Table
size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
  MXYZ30-A 30 by 30 XYZ 1 0.2 Aluminum alloy Black anodized 5μm 25 15

Model

Detail dimension from front side viewing

Detail dimensions from right side viewing

Type

A

H

C

K1

Q

J

F

E

B+/-S(Movement)

N

D

G

G1

P

MXYZ

30

50

37.5

12.5

10.5

7.7

9

4.5

24.3+/-3.2

19

10

8.5

12.5

6

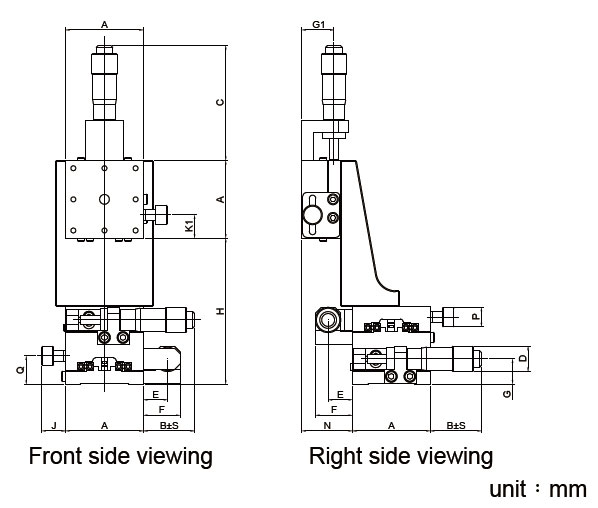

Mechanical Drawing

Manual Triple-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZ30-A Crossed Roller Stage XYZ Axis 30x30mm Table with Travel 6.4mm Click to Get a Quote
