Manual Crossed Roller XYZ Axis Positioning Stage

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual XYZ positioning stage is made of stainless steel with electroless nickel plating.

The table size is 30 x 30 mm has a body weight of 0.29 Kgf.

The maximum load of this super thin table is 5 Kgf.

The movement accuracy is Straightness 5Ám ,Vertical yawing 25" and Parallel yawing 15".

Model No. Table
Axis Load capacity
Material Surface
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXYZ30-S 30 by 30 XYZ 5 0.29 SUS 440C Electroless nickel plating 5μm 25" 15"

Mechanical Drawing

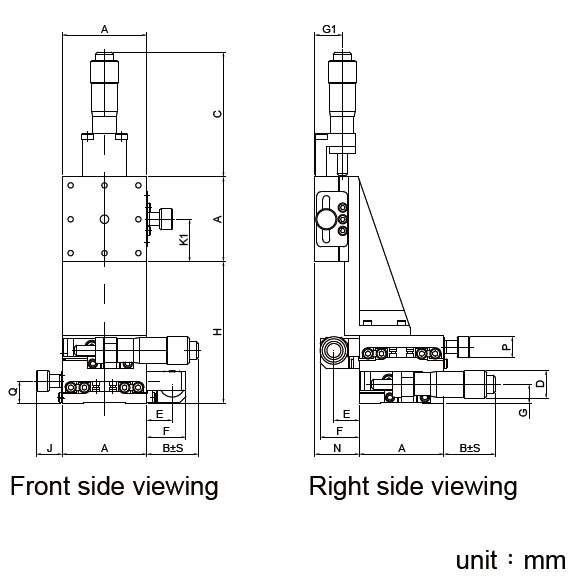

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZ30-S Linear Ball Bearing Stage XYZ Axis 30x30mm Table with Travel 6.4mm Click to Get a Quote
