Manual Crossed Roller XYZ Axis Positioning Stage

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XYZ-axis positioning stage is made of aluminum alloy with an black anodized coating.

The table size is 40 x 40 mm has a body weight of 0.51 kg.

The maximum load of this super thin table is 1 kg.

The Multiple axes is base MY40–AS, Middle ..and Top MZA–40 .

The Outline dimensions are W 96.25 , D 77.45 and H 80 mm.

The Range of Travel are X +/-6.5 , Y +/-6.5 and Z +/-3.0.

Part No.. Multiple axes Table
Outline dimensions (mm) Range of Travel (mm) Load Capacity
Base Middle Top W D H X Y Z θ
  MXYZA40-A MY40–AS - MZA–40 40×40 96.25 77.45 80 +/-6.5 +/-6.5 +/-3.0 - 1 0.51

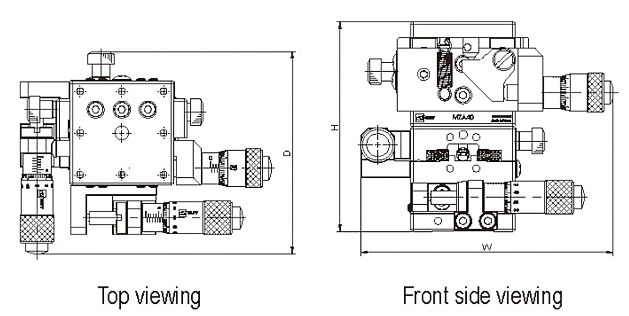

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZA40-A Crossed Roller Stage Multi Axis 40 x 40 mm Table with Travel 13mm Click to Get a Quote
