Manual Crossed Roller XYZ and Rotary Axis Positioning Stage
MXYZAR38-A

Home >  Manual Stages > XYZ and Rotary-axis Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual rotary positioning is made of aluminum alloy with an black anodized coating.

The table size is 80 x 80 mm has a body weight of 1.37 kgf.

The maximum load of this super thin table is 5 kgf.

The movement accuracy is Straightness 5m ,Vertical yawing 25" and Parallel yawing 15".

Specifications
Model No. Multiple axes Table
size
Outline dimensions (mm) Range of Travel (mm) Load capacity
(kg)
Weight
(kg)
Base Middle Top W D H X Y Z θ
 MXYZAR38-A MY40-AS MZA-40 MR38-A 38 96.25 88.75 100 +/-6.5 +/-6.5 +/-3.0 Coarse360
Fine+/-0.5
0.9 0.63

Mechanical Drawing

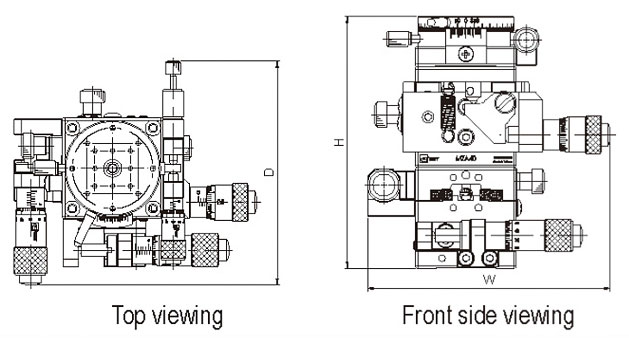

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZAR38-A Manual Crossed Roller XYZ and Rotary Axis Positioning Stage Click to Get a Quote
