Manual Crossed Roller XZ Axis Positioning Stage
MXZ25-S

 Home >  Manual Stages > XZ Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XZ-axis positioning stage is made of stainless steel with electrless nickle plating.

The table size is 25 x 25 mm has a body weight of 0.15 kgf.

The maximum load of this super thin table is 1 kgf.

The movement accuracies are: Straightness 5Ám ,Vertical yawing 30" and Parallel yawing 25".

Specifications
  Unit: mm
Model No. Table
size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXZ25-S 25 by 25 XZ 1 0.15 SUS 440C Electroless nickel plating 5 μm 30" 25"

Mechanical Drawing

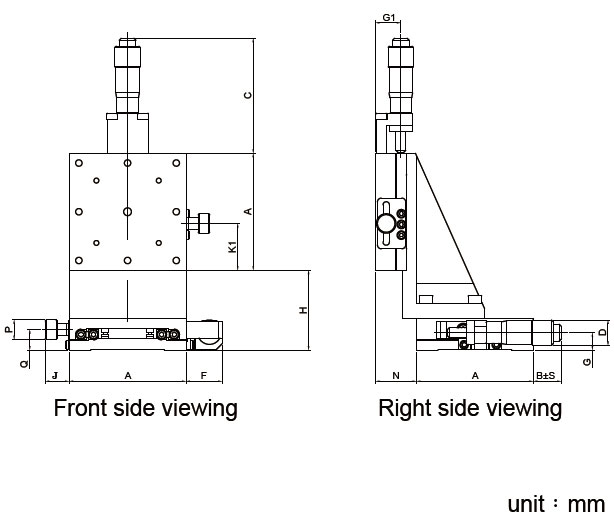

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXZ25-S Linear Ball Bearing Stage 25x25mm Table with Travel 6.4mm Click to Get a Quote
