Manual Crossed Roller XZ Axis Positioning Stage
MXZ40-A

 Home >  Manual Stages > XZ Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This Manual Crossed Roller XZ Axis Positioning Stage is made of aluminum alloy with an black anodized coating.

The table size is 40 x 40 mm has a body weight of 0.38 kgf.

The maximum load of this super thin table is 1 kgf.

The movement accuracies are: Straightness 5Ám ,Vertical yawing 25" and Parallel yawing 15".

Specifications
  Unit: mm
Model No. Table
size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXZ40-A 40 by 40 XZ 1 0.38 Aluminum alloy Black anodized 5 μm 25" 15"

Model

Detail dimension from front side viewing

Detail dimensions from right side viewing

Type

A

H

C

K1

P

Q

J

F

B+/-S(Movement)

N

D

G

G1

MXZ

40

55

62

28

10

14.5

11.2

19

26.3+/-6.5

10

13

13

17

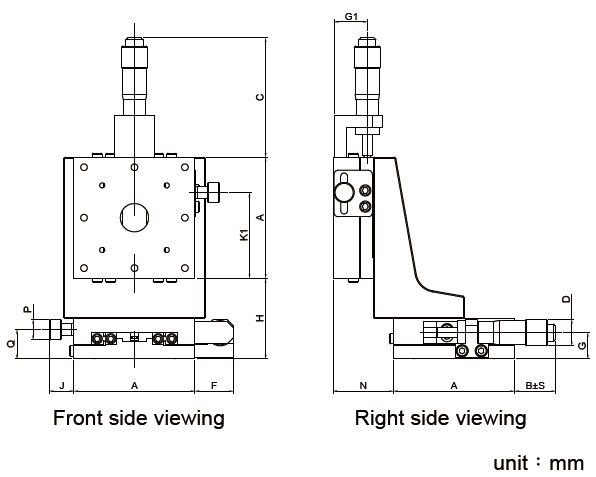

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXZ40-A Crossed Roller Stage XZ Axis 40x40mm Table with Travel 13mm Click to Get a Quote
