Manual Crossed Roller XZ Axis Positioning Stage
MXZ40-S

 Home >  Manual Stages > XZ Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XZ-axis positioning stage is made of stainless steel with electrless nickle plating.

The table size is 40 x 40 mm has a body weight of 0.51 kgf.

The maximum load of this super thin table is 5 kgf.

The movement accuracies are: Straightness 5Ám ,Vertical yawing 25" and Parallel yawing 15".

Specifications
  Unit: mm
Model No. Table
size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXZ40-S 40 by 40 XZ 5 0.51 SUS 440C Electroless nickel plating 5 μm 25" 15"

Mechanical Drawing

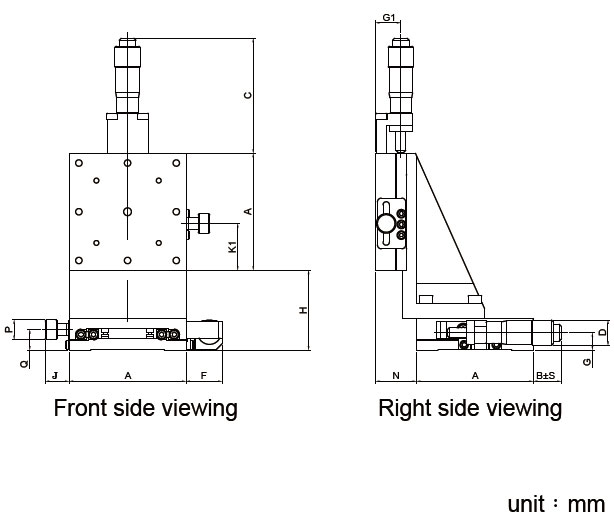

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXZ40-S Linear Ball Bearing Stage 40x40mm Table with Travel 13mm Click to Get a Quote
