Manual Crossed Roller XZ Axis Positioning Stage
MXZ70-A

 Home >  Manual Stages > XZ Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This Manual Crossed Roller XZ Axis Positioning Stage is made of aluminum alloy with an black anodized coating.

The table size is 70 x 70 mm has a body weight of 0.81 kgf.

The maximum load of this super thin table is 2 kgf.

The movement accuracies are: Straightness 5Ám ,Vertical yawing 25" and Parallel yawing 15".

Specifications
  Unit: mm
Model No. Table
size
Axis Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXZ70-A 70 by 70 XZ 2 0.81 Aluminum alloy Black anodized 5 μm 25" 15"

Model

Detail dimension from front side viewing

Detail dimensions from right side viewing

Type

A

H

C

K1

P

Q

J

F

B+/-S(Movement)

N

D

G

G1

MXZ

70

39.9

59.7

53.5

10

14.4

11.2

19

21.2+/-6.5

25

13

13

17

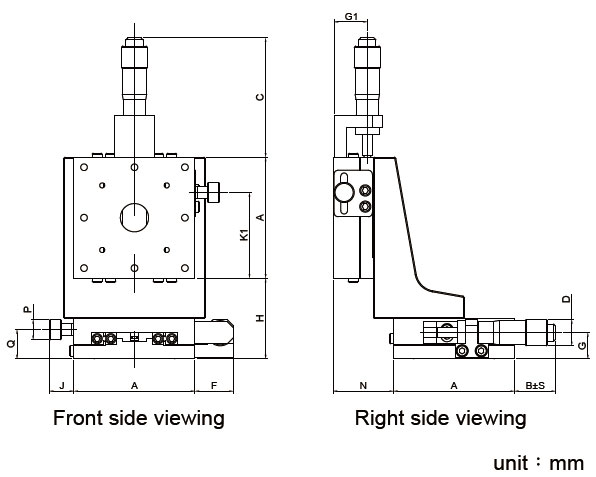

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXZ70-A Crossed Roller Stage XZ Axis 70x70mm Table with Travel 13mm Click to Get a Quote
