Manual Linear Positioning Stage

prev

Home > Manual Stages > Simplified Stages > Miniature Simplified X-Axis Stages

next

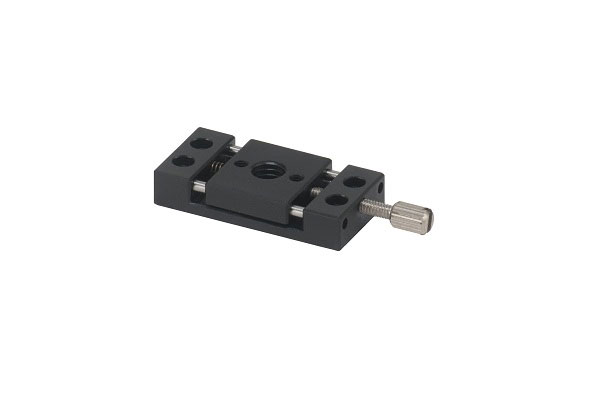

Manual Linear Positioning Stage Picture

This manual linear positioning is made of aluminum alloy with an black anodized coating.

The bench size is 12 X 13 mm has a body weight of 0.005 kgf.

The maximum load of this linear table is 0.5 kgf.

The distance of travel is +/- 1.7 mm.

The movement accuracy straightness is 50 Ám.

The minimum reading is no scale with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Axis Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MN1A-12

12 mm by 13 mm X 50 μm 0.5 0.005 Aluminum Alloy Black anodized +/- 1.7 No Scale

Mechanical Drawing

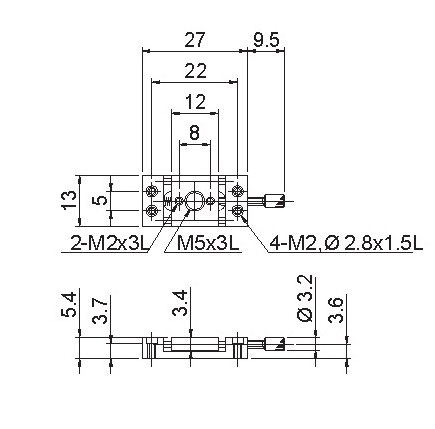

Manual Linear Positioning Stage Mechanical Drawing
MN1A-12

 Ordering Information

Part No. Description Amount
MN1A-12 Manual Stage, Simplified Stage, Miniature Simplified X-Axis Stage, Range of Travel +/- 1.7 mm Click to Get a Quote
