Manual Linear Positioning Stage

prev

Home > Manual Stages > Simplified Stage > Miniature Simplified X-Axis Stage

next

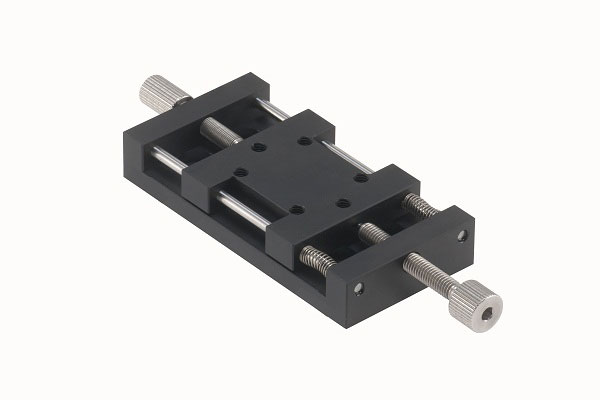

Manual Linear Positioning Stage Picture


This manual linear positioning is made of aluminum alloy with an black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.104 kgf.

The maximum load of this linear table is 1.5 kgf.

The distance of travel is +/- 7.5 mm.

The minimum reading is 0.5 mm scale with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Axis Travel Distance Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MNG1E-40CL

40 by 40 X axis +/-7. 5 1.5 0.104 Aluminum Alloy Black anodized 0.5 mm

Mechanical Drawing

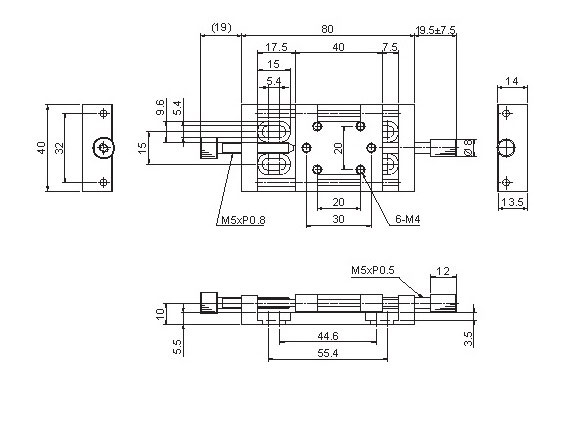

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MNG1E-40CL Manual Stage, Simplified Stage, Miniature Simplified X-Axis Stage, Range of Travel +/- 7.5 mm Click to Get a Quote
