Manual Linear Positioning Stage

next

Home > Manual Stages > Simplified Stage > Miniature Simplified XY-Axis Stages

next

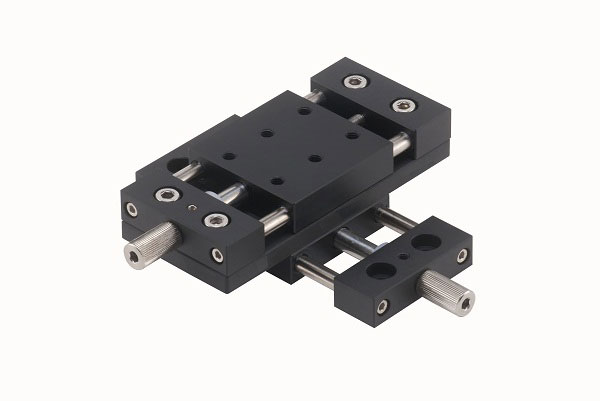

Manual Linear Positioning Stage Picture


This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.27 kgf.

The travel distance is 0.7 mm per revolution of knob.

The maximum load of this linear table is 1.9 kgf.

The distance of travel is +/- 9 mm.

Specifications

Unit: mm
Model No. Table
Size
Axis Travel Distance Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance per
Rev. of Knob

 MNE2E-40

40 by 40 XY-axis +/- 9 3.7 0.27 Aluminum Alloy Black anodized 0.7 mm

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MNE2E-40 Manual Stage, Simplified Stage, Miniature Simplified XY-Axis Stage, Range of Travel +/- 9 mm Click to Get a Quote
