Manual Linear Positioning Stage


Home > Manual Stages > Simplified Stage > Miniature Simplified XY-Axis Stages


Manual Linear Positioning Stage Picture

This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.

The bench size is 60 X 60 mm has a body weight of 0.48 kgf.

The travel distance is 0.7 mm per revolution of knob.

The maximum load of this linear table is 3.7 kgf.

The distance of travel is +/- 13 mm.


Unit: mm
Model No. Table
Axis Travel Distance Load capacity
Material Surface
Travel Distance per
Rev. of Knob


60 by 60 XY-axis +/- 13 3.7 0.48 Aluminum Alloy Black anodized 0.7 mm

Mechanical Drawing

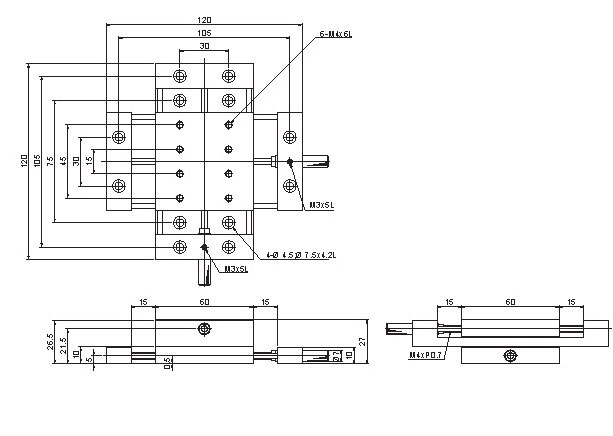

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MNE2E-60 Manual Stage, Simplified Stage, Miniature Simplified XY-Axis Stage, Range of Travel +/- 13 mm Click to Get a Quote
