Manual Linear Positioning Stage

prev

Home > Manual Stages > Simplified Stage > Miniature Simplified XY-Axis Stages

next

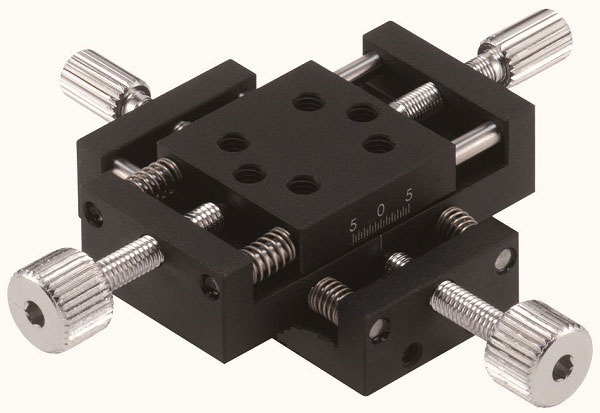

Manual Linear Positioning Stage Picture


This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.

The bench size is 25 X 25 mm has a body weight of 0.055 kgf.

The maximum load of this linear table is 1 kgf.

The distance of travel is +/- 5 mm.

The minimum reading is 0.5 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Axis Travel Distance Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MNG2E-25CL

25 by 25 XY-axis +/- 5 1 0.055 Aluminum Alloy Black anodized 0.5 mm

Mechanical Drawing

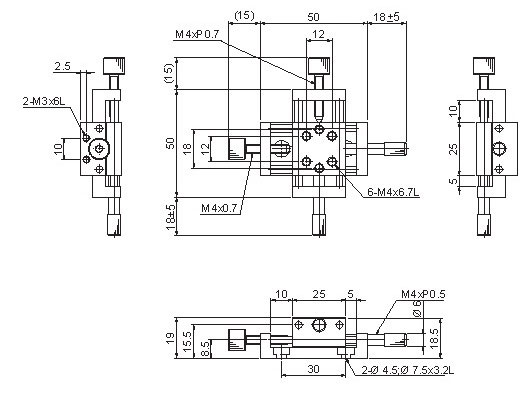

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MNG2E-25CL Manual Stage, Simplified Stage, Miniature Simplified XY-Axis Stage, Range of Travel +/- 5 mm Click to Get a Quote
