Manual Crossed Roller Vertical Positioning Stage

Home > Manual Stages > Z-axis Stage > Crossed Roller

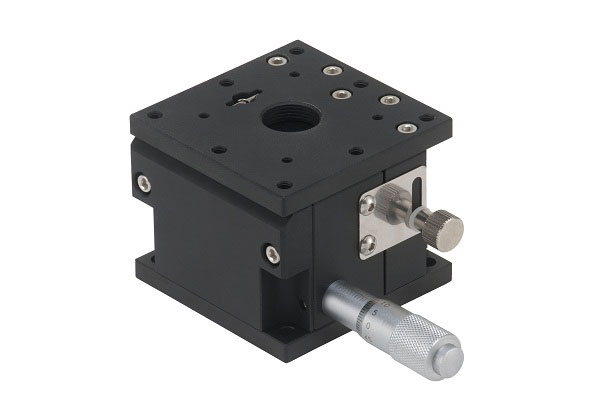

Manual Crossed Roller Vertical Positioning Stage Picture


This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.2 kgf.

The maximum load of this crossed roller vertical table is 1 kgf.

The distance of travel is +/-2.0 mm.

The movement accuracy of straightness is 3 Ám.

The total parallelism is 100 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Parallelism
  MZA-40H 40 by 40 10 μm 3 μm 1.0 0.2 Aluminum Alloy Black anodized +/-3.0 100 μm

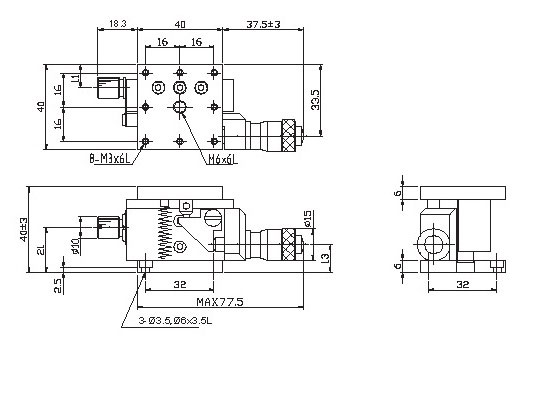

MZA-40

 Ordering Information

Part No. Description Amount
MZA-40 Manual Stage, Z-axis Stage, Crossed Roller, Range of Travel +/-3.0 mm Click to Get a Quote
