Manual Single-axis Linear Positioning Stage
MX-25-AC

Home >  Manual Stages > Crossed Roller Stages > X-axis Stages

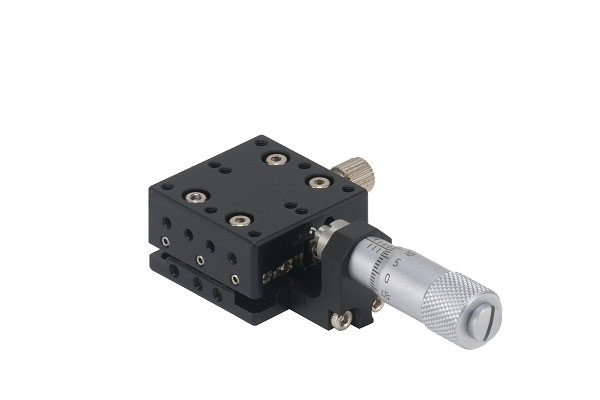

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 25 x 25 mm has a body weight of 0.04 kgf.

It provides central type of feed position.

The maximum load of this super thin table is 1 kgf.

The distance of travel is +/- 3.2 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MX25-AC

25 mm by 25 mm X axis Central +/-3.2 mm 3 μm 1 0.04 Aluminum Alloy Black anodized 10 μm

Mechanical Drawing

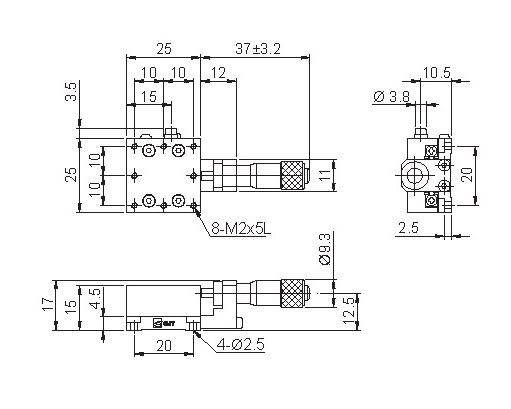

Manual Single-axis Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MX-25-AC Crossed Roller Mini Auminum Stage X Axis 25x25mm Table with 6.4mm Travel Click to Get a Quote
