Manual Single-axis Linear Positioning Stage
MX120-AC

Home >  Manual Stages > Crossed Roller Stages > X-axis Stages

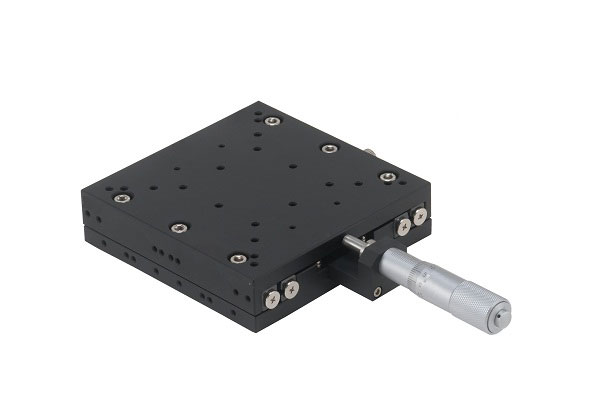

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 120 x 120 mm has a body weight of 1.6 kgf.

It provides central type of feed position.

The maximum load of this super thin table is 20 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MX120-AC

120 by 120 X axis Center +/-12.5 10 μm 3 μm 20 1.6 Aluminum Alloy Black anodized

Mechanical Drawing

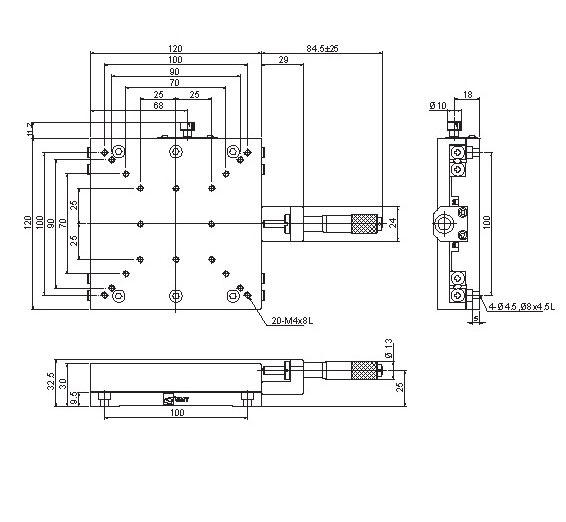

Manual Single-axis Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MX120-AC Crossed Roller Mini Auminum Stage X Axis 120x120mm Table with 25mm Travel Click to Get a Quote
