Manual Single-axis Linear Positioning Stage
MX50-AC

Home >  Manual Stages > Crossed Roller Stages > X-axis Stages

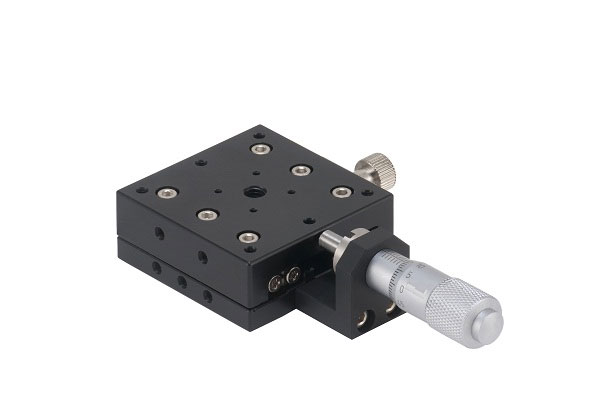

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 50 X 50 mm has a body weight of 0.22 kgf.

It provides center type of feed position.

The maximum load of this super thin table is 4 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MX50-AC

50 mm by 50 mm X axis Central +/-6.5 mm 3 μm 4 0.22 Aluminum Alloy Black anodized 10 μm

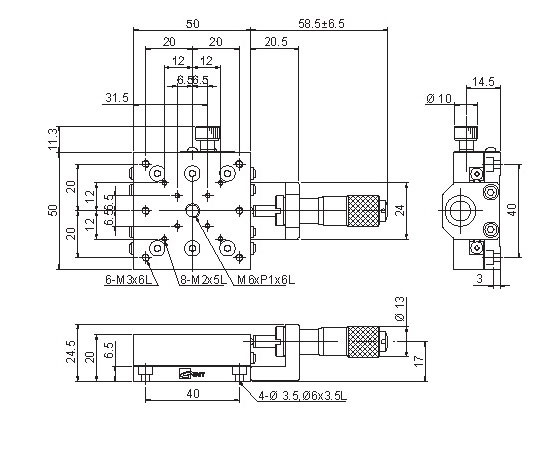

Mechanical Drawing

Manual Single-axis Linear Positioning Stage mechanical Drawing

 Ordering Information

Part No. Description Amount
MX50-AC Crossed Roller Mini Auminum Stage X Axis 50x50mm Table with 13mm Travel Click to Get a Quote
