Manual Linear XY-axis Positioning Stage
MY120-AS



Home > Manual Stages > Crossed Roller Stages > XY-axis Stages

Manual Linear XY-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 120 x 120 mm has a body weight of 3.2 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 18.4 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MY120-AS

120 by 120 XY axis Side +/-12.5 10 μm 3 μm 18.4 3.2 Aluminum Alloy Black anodized

Mechanical Drawing

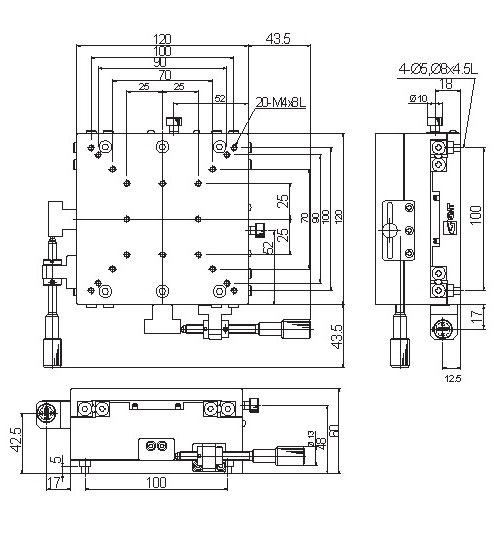

Manual Linear XY-axis Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MY120-AS Crossed Roller Stage Side Drive XY-Axis 120x120mm Size 25mm Travel 0.01mm Precision Click to Get a Quote
