Manual Linear XY-axis Positioning Stage
MY80-AS

Home > Manual Stages > Crossed Roller Stages > XY-axis Stages

Manual Linear XY-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 80 X 80 mm has a body weight of 1 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 9.5 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MY80-AS

80 by 80 XY axis Side +/-12.5 10 μm 3 μm 9.5 1 Aluminum Alloy Black anodized

Mechanical Drawing

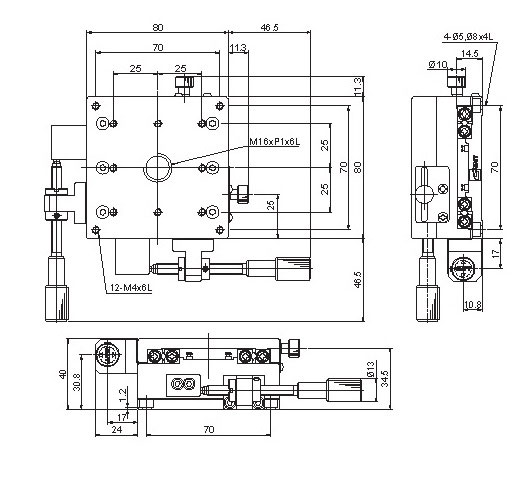

Manual Linear XY-axis Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MY80-AS Crossed Roller Stage Side Drive XY-Axis 80x80mm Size 25mm Travel 0.01mm Precision Click to Get a Quote
