Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

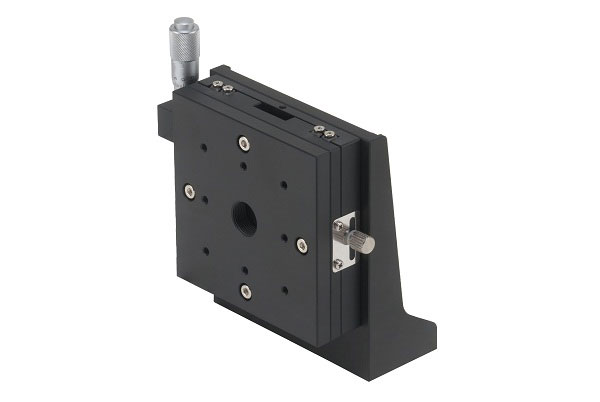

Manual Linear Positioning Stage Picture


This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 90 x 90 mm has a body weight of 0.91 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 3 kgf.

The distance of travel is +/- 7.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MLZ90-ASZ

90 by 90 X+L Bracket Side +/-7.5 10 μm 3 μm 3 0.91 Aluminum Alloy Black anodized

Mechanical Drawing

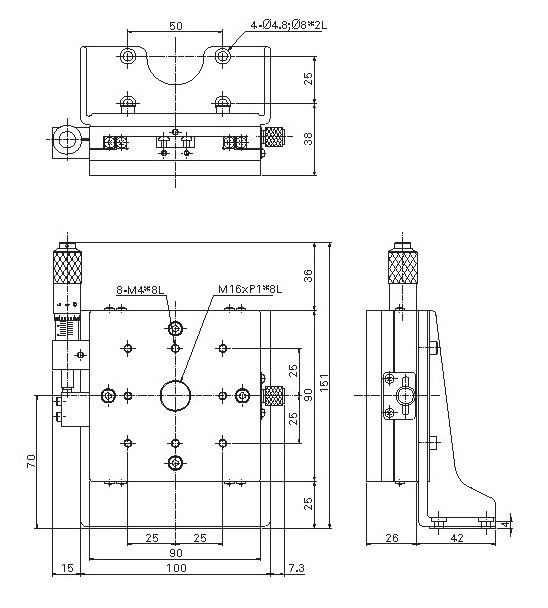

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MLZ90-ASZ Crossed Roller Mini Auminum Thin Type Stage Z Axis 90x90mm Table with 15mm Travel Click to Get a Quote
