Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

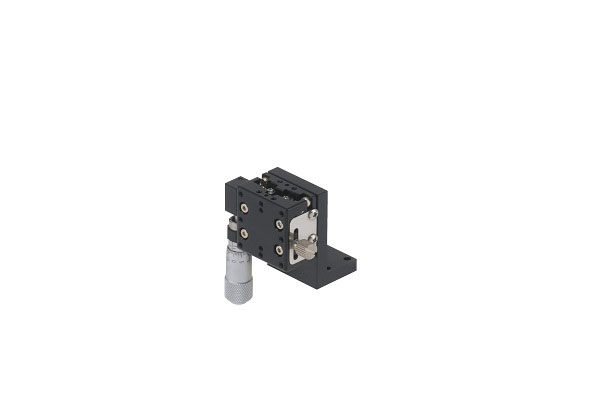

Manual Linear Positioning Stage Picture


This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 25 x 25 mm has a body weight of 0.06 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 5 kgf.

The distance of travel is +/- 3.2 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

  Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing

 MZL25-AS

25 by 25 10 μm 0.5 0.06 Aluminum Alloy Black anodized +/-3.2 3 μm 30 20

Mechanical Drawing

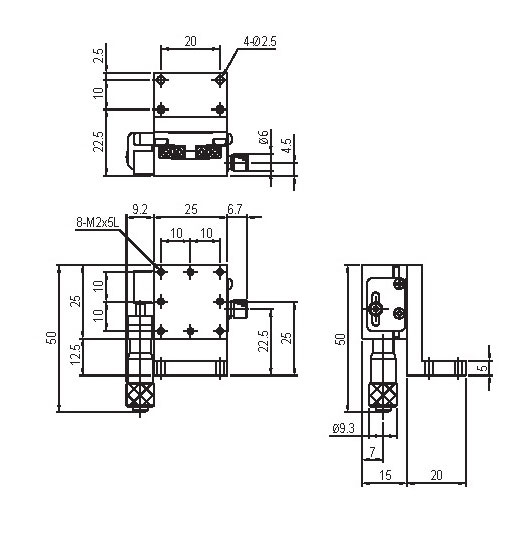

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MZL25-AS Crossed Roller Stage Z-Axis 25x25mm Size 6.4mm Travel 0.01mm Precision Click to Get a Quote
