Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

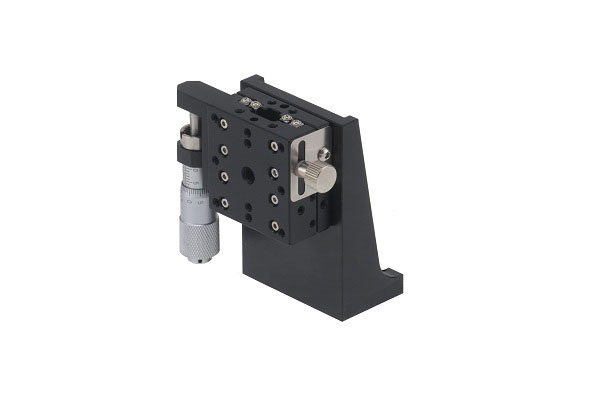

Manual Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.2 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 1kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

  Unit: mm
Model No. Table
minimum reading
Load capacity
Material Surface
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing


40 by 40 10 μm 1.0 0.2 Aluminum Alloy Black anodized +/-6.5 3 μm 25 15

Mechanical Drawing

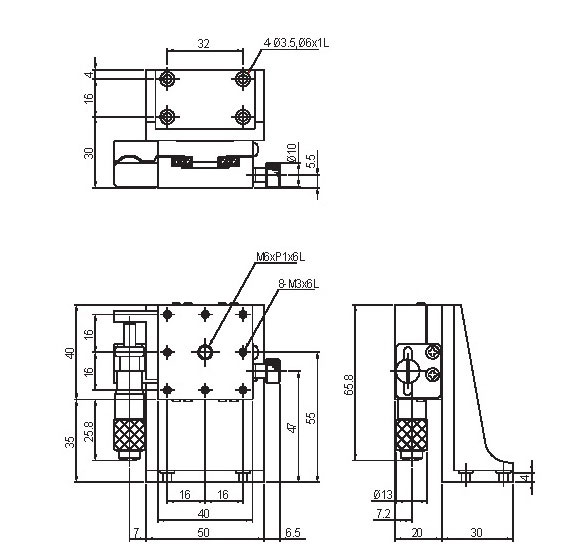

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MZL40-AS Crossed Roller Stage Z-Axis 40x40mm Size 13mm Travel 0.01mm Precision Click to Get a Quote
