Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

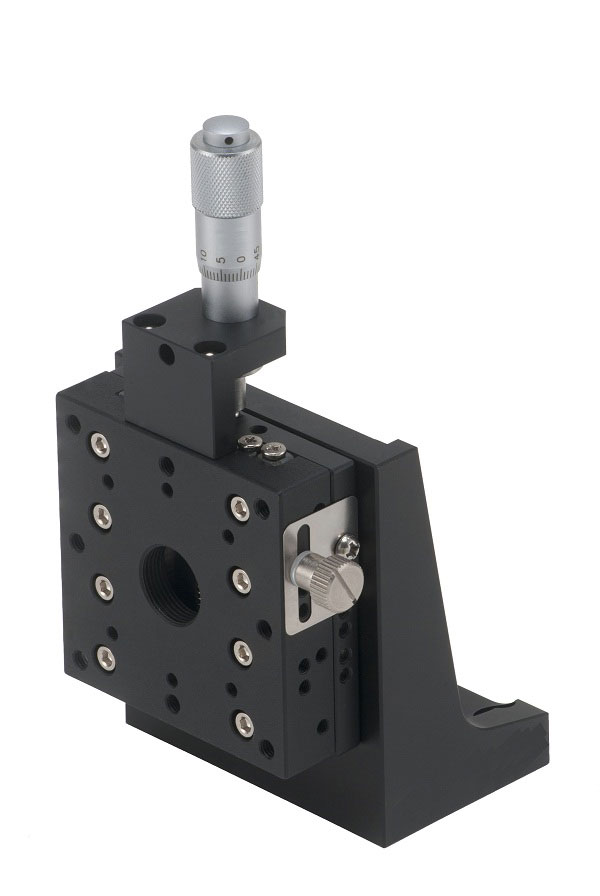

Manual Linear Positioning Stage Picture


This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 60 X 60 mm has a body weight of 0.45 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 2 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing

 MZL60-ACR

60 by 60 10 μm 2.0 0.45 Aluminum Alloy Black anodized +/-6.5 3 μm 25 15

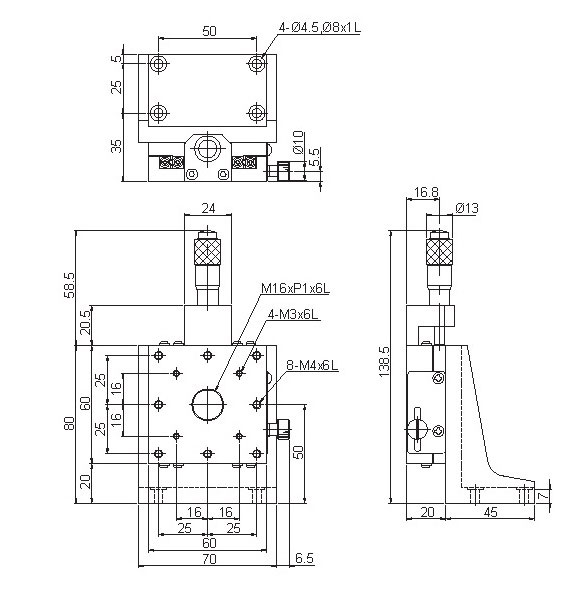

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MZL25-ACR Crossed Roller Stage Z-Axis 60x60mm Size 13mm Travel 0.01mm Precision Click to Get a Quote
MZL40-ACR Z-axis Manual Stage Click to Get a Quote
MZL60-ACR Z-axis Manual Stage Click to Get a Quote
MZL80-ACR Z-axis Manual Stage Click to Get a Quote
