Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

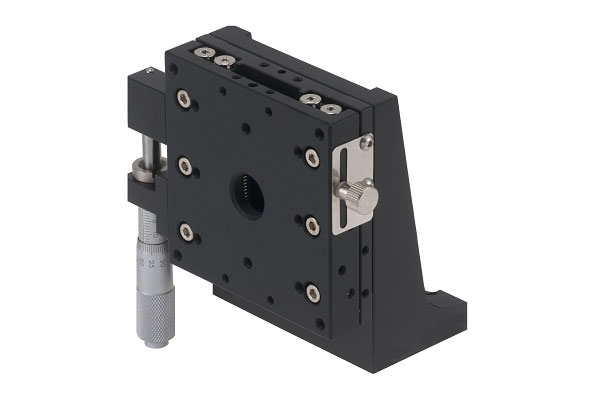

Manual Linear Positioning Stage Picture


This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 80 X 80 mm has a body weight of 0.8 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 5 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Micrometer
minimum reading
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Movement accuracy
Straightness Vertical yawing Parallel yawing

 MZL80-AS

80 by 80 10 μm 5.0 0.8 Aluminum Alloy Black anodized +/-12.5 3 μm 25 15

Mechanical Drawing

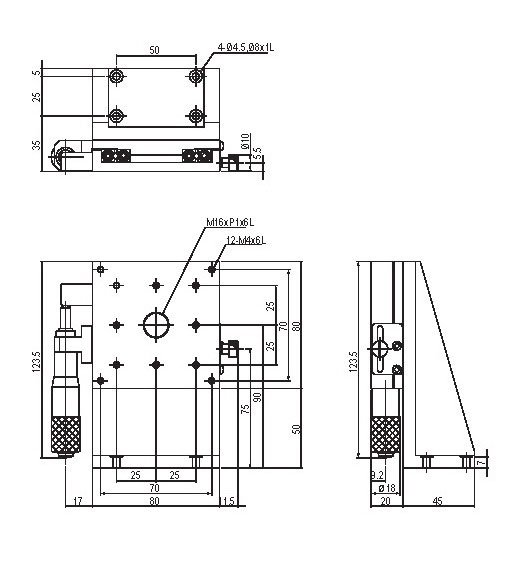

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MZL80-AS Crossed Roller Stage Z-Axis 80x80mm Size 25mm Travel 0.01mm Precision Click to Get a Quote
