Manual Thin Single-axis Positioning Stage
MXL40-AC

Home >  Manual Stages > Crossed Roller Stages > Thin Stages

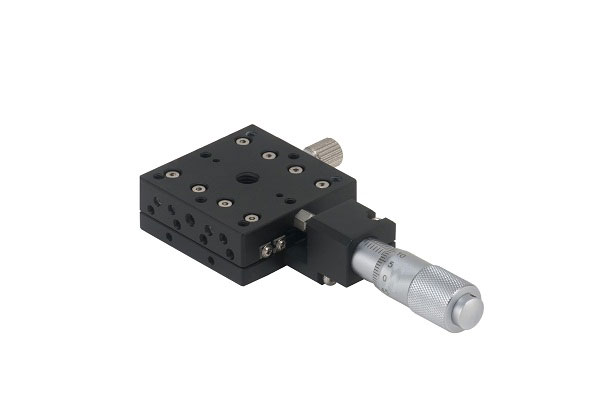

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.2 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 1.5 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MXL40-AC

40 mm by 40 mm X Central +/-6.5 mm 3 μm 3 0.13 Aluminum Alloy Black anodized 10 μm

Mechanical Drawing

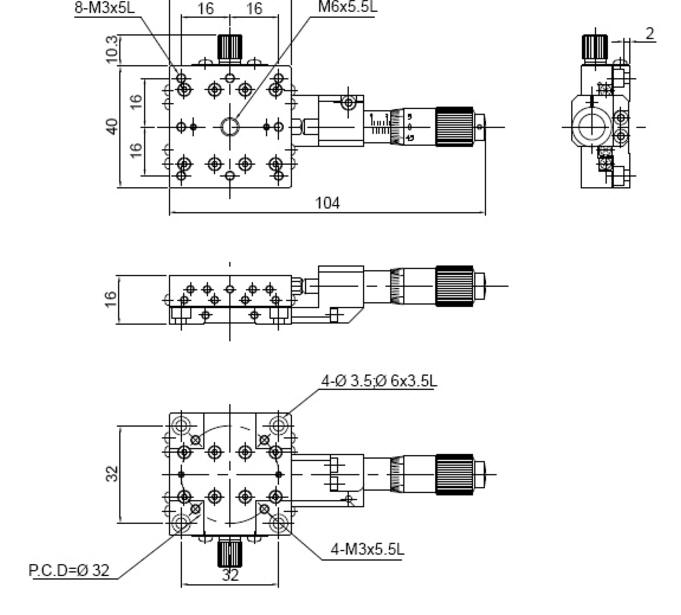

Manual Thin Single-axis Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXL40-AC Manual low profile linear positioning stage , table size 40 by 40 mm, x-axis, feed position central Click to Get a Quote
