Manual Thin Dual-axis Positioning Stage
MYL40-AS

Home >  Manual Stages > Crossed Roller Stages > Thin Stages

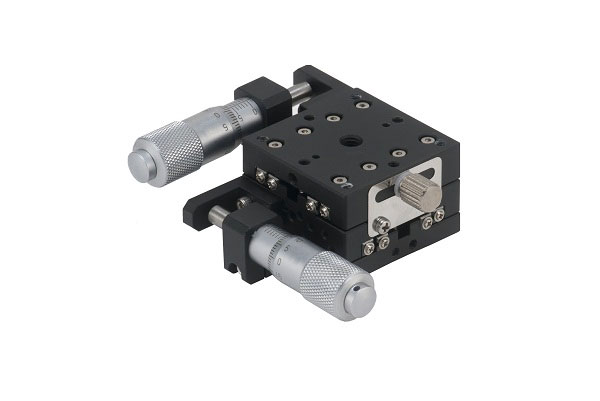

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.23 kgf.

It provides side type of feed position.

The maximum load of this super thin table is 3 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MYL40-AS

40 mm by 40 mm XY Side +/-6.5 mm 3 μm 3 0.23 Aluminum Alloy Black anodized 10 μm


Mechanical Drawing

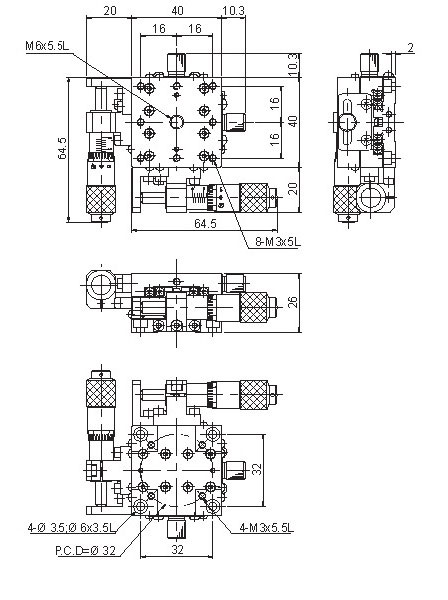

Manual Thin Single-axis Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MYL40-AS Thin Crossed Roller Stage Side Drive XY-Axis 40x40mm Size 13mm Travel 0.01mm Precision Click to Get a Quote
