Manual Linear Positioning Stage

Home >  Manual Stages > Dovetail Stages > Feeding Screw X-axis

Manual Linear Positioning Stage Picture


MC1A-60 manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 60 X 60 mm and have a body weight of 0.47.

The maximum load of these feed screw tables is 4 kgf.

The distance of travel is +/- 9 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC1A-60

60 by 60 30 μm 3.0 0.47 Stage body: Brass
Feeding screw knob: Aluminum
Black fluororesin finished +/-9 0.1mm / indicator

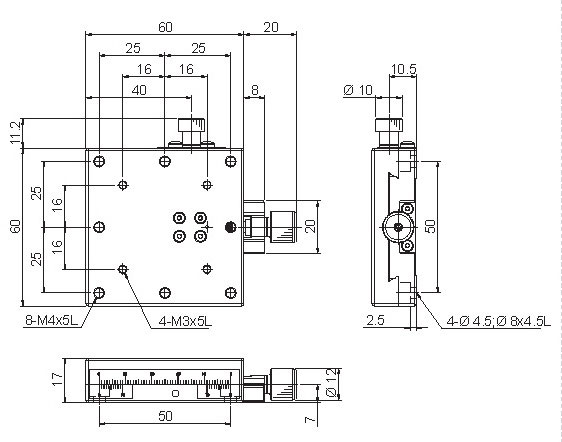

MC1A-60

 Ordering Information

Part No. Description Amount
MC1A-60 Manual Stage, Dovetail Stage, Feeding Screw X-axis, Range of Travel +/-9 mm Click to Get a Quote
