Manual Linear Positioning Stage

Home >  Manual Stages > Dovetail Stages > Feeding Screw XY-axis

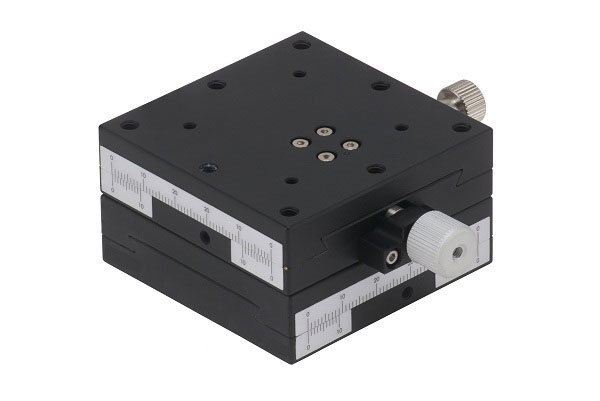

Manual Linear Positioning Stage Picture

MC2A-40 manual, dovetail, feeding screw, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis linear dovetail feed screw's stage body is made of bass and is made of aluminum with an elegant black fluororesin coating.

The table sizes are 40 X 40 mm and have a body weight of 0.38.

The maximum load of these feed screw tables is 2.8 kg.

The stroke is +/- 7 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Unit: mm
Part No.. Table
Movement accuracy
Load Capacity
Material Surface
Travel Distance Minimum reading
MC2A-40 40 by 40 30 micron 2.8 0.38 Stage body: Brass
Feeding screw knob: Aluminum
Black fluororesin finished +/-7 0.1mm / indicator

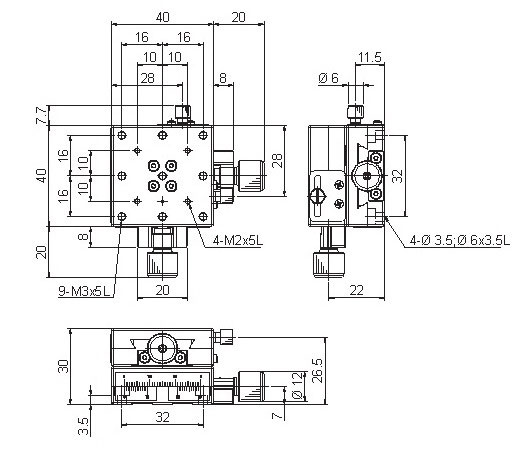

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MC2A-40 Manual Stage, Dovetail Stage, Feeding Screw XY-axis, Range of Travel +/-7 mm Click to Get a Quote
