MC2A-A60 manual, dovetail, feeding screw, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis linear dovetail feed screw's stage body is made of bass and is made of aluminum with an elegant black fluororesin coating.

The table sizes are 60 X 60 mm and have a body weight of 1.2.

The maximum load of these feed screw tables is 3.4 kgf.

The distance of travel is +/- 9 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator
MC2A-25 25 by 25 30 μm 2.9 0.15 Stage body: Brass
Feeding screw knob: Aluminum
Black fluororesin finished +/-3 0.1mm / indicator
MC2A-40 40 by 40 30 μm 2.8 0.38 Stage body: Brass
Feeding screw knob: Aluminum
Black fluororesin finished +/-7 0.1mm / indicator
MC2A-60 60 by 60 30 μm 3.4 1.2 Stage body: Brass
Feeding screw knob: Aluminum
Black fluororesin finished +/-9 0.1mm / indicator

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

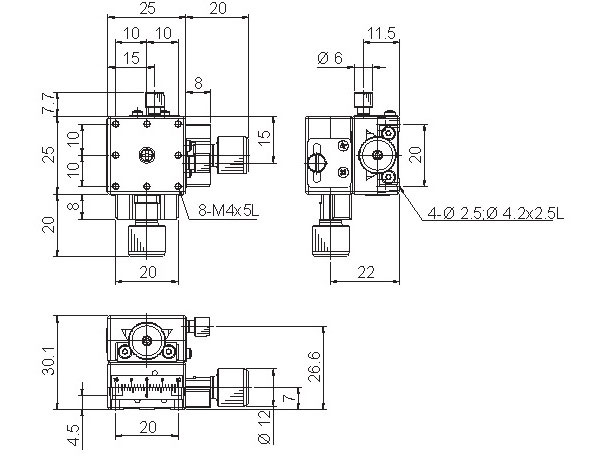

MC2A-25

Manual Linear Positioning Stage Mechanical Drawing
MC2A-40

Manual Linear Positioning Stage Mechanical Drawing

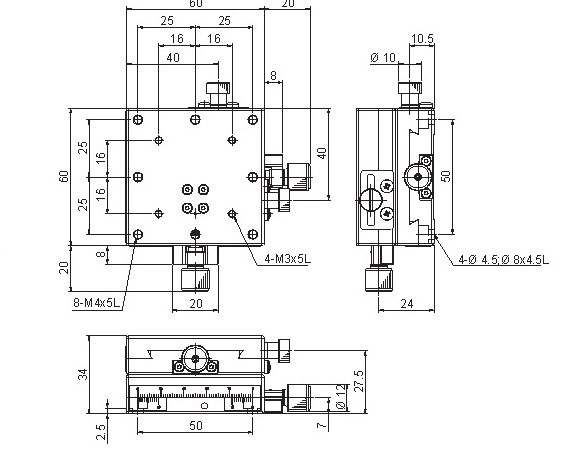

MC2A-60

 Ordering Information

Part No. Description Amount
MC2A-25 Manual Stage, Dovetail Stage, Feeding Screw XY-axis, Range of Travel +/-3 mm Click to Get a Quote
MC2A-40 Manual Stage, Dovetail Stage, Feeding Screw XY-axis, Range of Travel +/-7 mm Click to Get a Quote
MC2A-60 Manual Stage, Dovetail Stage, Feeding Screw XY-axis, Range of Travel +/-9 mm Click to Get a Quote
