Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Feeding Screw Z-axis

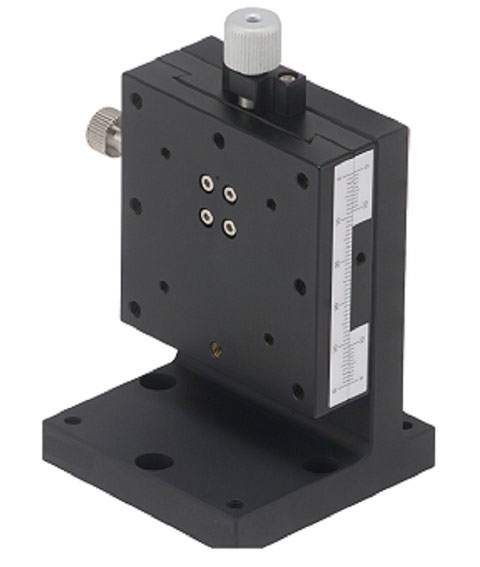

Manual Linear Positioning Stage Picture


MC4A-40 manual, dovetail, feeding screw, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.26.

The maximum load of these feed screw tables is 1.0 kgf.

The stroke of travel is +/- 7 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC4A-40

40 by 40 30 μm 1.0 0.26 Stage body: Brass
Feeding screw knob: Aluminum
Black fluororesin finished +/-7 0.1mm / indicator

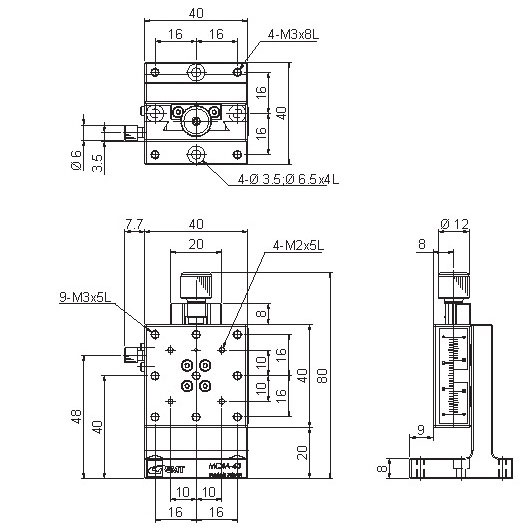

Manual Linear Positioning Stage Mechanical Drawing
MC4A-40

 Ordering Information

Part No. Description Amount
MC4A-40 Manual Stage, Dovetail Stage, Feeding Screw Z-axis, Range of Travel +/-7 mm Click to Get a Quote
