Manual Linear Positioning Stage

Home >  Manual Stages > Dovetail Stages > Feeding Screw X-axis, 4.2 mm Lead

Manual Linear Positioning Stage Picture


MC1A-46L manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes is 40 X 60 mm and have a body weight of 0.14 kgf.

The maximum load of these feed screw tables is 3 kgf.

The distance of travel is +/- 21 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MC1A-46L

40 by 60 X axis Central +/- 21 30 μm 3 0.14 Aluminum Alloy Black anodized 0.1mm/indicator

Mechanical Drawing

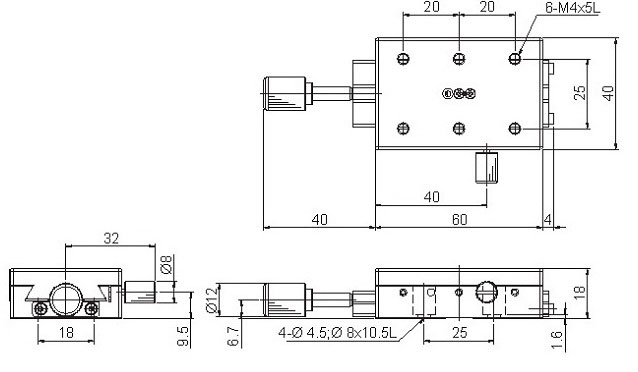

Manual Linear Positioning Stage Mechanical Drawing
MC1A-46L

 Ordering Information

Part No. Description Amount
MC1A-46L Manual Stage, Dovetail Stage, Feeding Screw X-axis 4.2 mm Lead, Range of Travel +/-21 mm Click to Get a Quote
