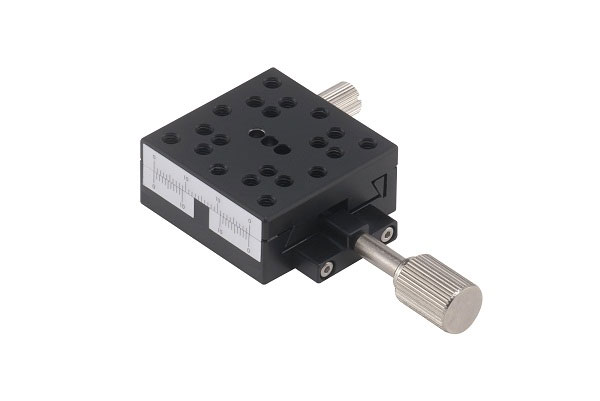

Manual Linear Positioning Stage Picture


MC1A-A40 manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.10.

The maximum load of these feed screw tables is 2 kgf.

The distance of travel is +/- 11 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MC1A-A40

40 by 40 X axis Central +/- 11 30 μm 2 0.10 Aluminum Alloy Black anodized 0.1mm/indicator

Mechanical Drawing

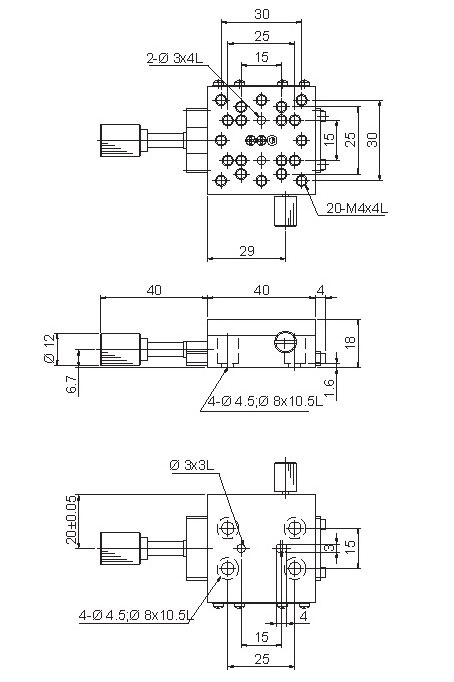

Manual Linear Positioning Stage Mechanical Drawing


 Ordering Information

Part No. Description Amount
MC1A-A40 Manual Stage, Dovetail Stage, Feeding Screw X-axis, 4.2 mm Lead, Range of Travel +/-11 mm Click to Get a Quote
