Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stage > Rack and Pinion X-axis long stroke

Manual Linear Positioning Stage Picture

MC1C-100 manual, dovetail, rack and pinion, X-axis long stroke stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis long stroke dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 100 mm and have a body weight of 0.14.

The maximum load of these feed screw tables is 3 kgf.

The distance of travel is +/- 40 mm.

The movement accuracy straightness is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Stage size Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC1C-100

100mm 30 μm 3.0 0.14 Aluminum Alloy Black anodized +/- 40 0.1mm/indicator

Mechanical Drawing

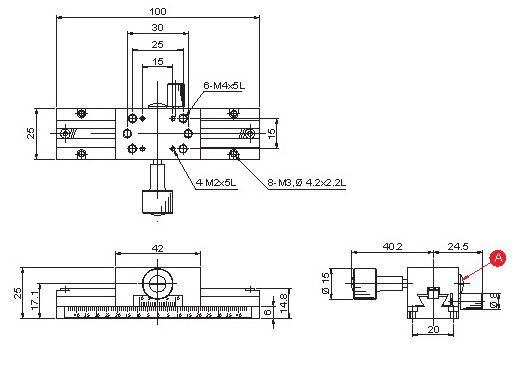

Manual Linear Positioning Stage Mechanical Drawing
MC1C-100

 Ordering Information

Part No. Description Amount
MC1C-100 Manual Stages, Dovetail Stage, Rack and Pinion X-axis long stroke, Range of Travel +/-40 mm Click to Get a Quote
