Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion X-axis

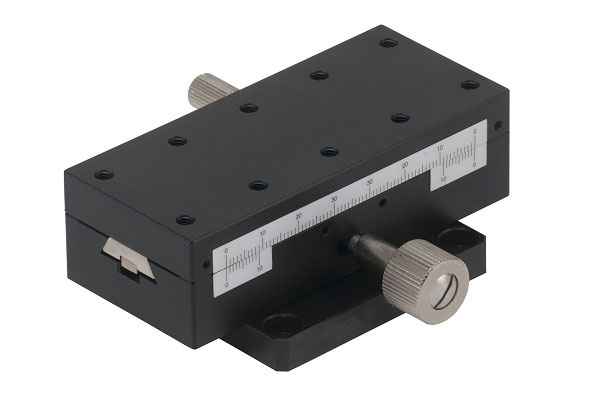

Manual Linear Positioning Stage Picture


MC1B-60 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 60 mm and have a body weight of 0.29.

The maximum load of these feed screw tables is 4 kgf.

The stroke of travel is +/- 21 mm.

The straightness accuracy is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Model No. Table Size Range of Travel Minimum Reading Straightness accuracy Allowable Weight Material Surface finish
Loading (kg) kg

 MC1B-60

40 by 60 +/-21 0.1mm/indicator 30Ám 4.0 0.29 Aluminum Alloy Black anodized

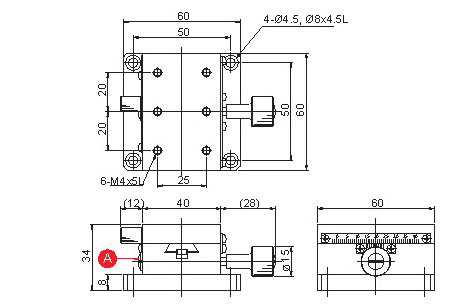

Manual Linear Positioning Stage Mechanical Drawing
MC1B 60

 Ordering Information

Part No. Description Amount
MC1B-60 Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-21 Click to Get a Quote
