Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion X-axis

Manual Linear Positioning Stage Picture


MC1B-90 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40x90 mm and have a body weight of 0.40.

The maximum load of these feed screw tables is 4 kgf.

The stroke of travel is +/- 35 mm.

The straightness accuracy is 30 Ám.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
Model No. Table Size Range of Travel Minimum Reading Straightness accuracy Allowable Weight Material Surface finish
Loading (kg) kg

 MC1B-90

40 by 90 +/-35 0.1mm/indicator 30Ám 4.0 0.40 Aluminum Alloy Black anodized

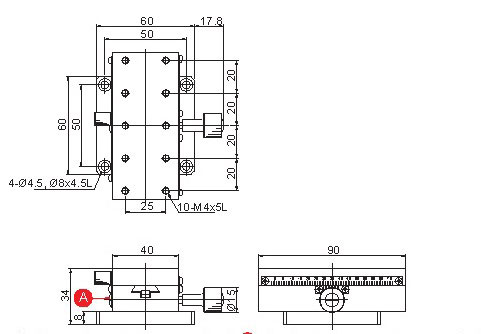

Manual Linear Positioning Stage Mechanical Drawing
MC1B 90

 Ordering Information

Part No. Description Amount
MC1B-90 Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-35 Click to Get a Quote
