Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XY-axis

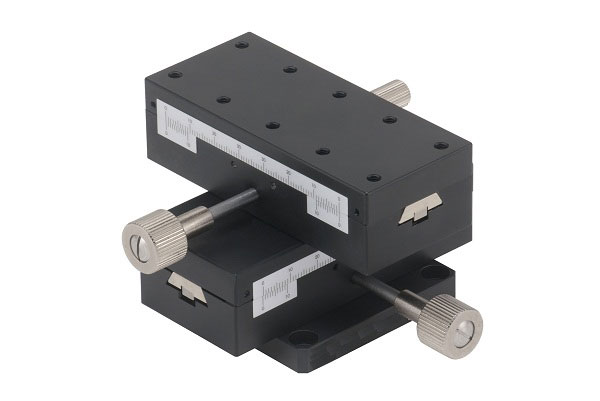

Manual Linear Positioning Stage Picture

MC2B-40 manual, dovetail, rack and pinion, XY-axis stages provide precise and accurate micrometer driven XY-axis adjustment of a top platform.

These manual XY-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 0.29.

The maximum load of these feed screw tables is 2.5 kg.

The stroke is +/- 12 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

  Unit: mm
Part No.. Table
Movement accuracy
Load Capacity
Material Surface
Travel Distance Minimum reading


24.8 by 42 30 micron 2.5 0.29 Aluminum Alloy Black anodized +/-12 0.1mm / indicator

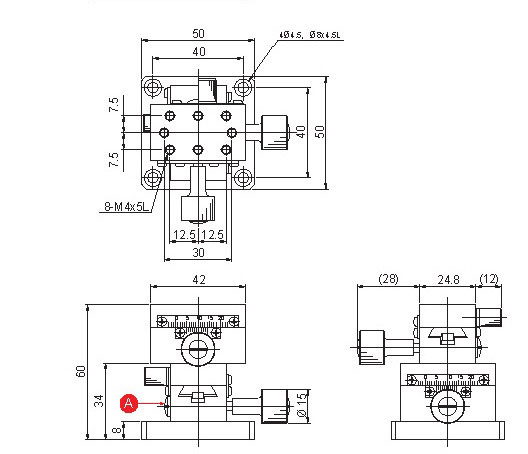

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MC2B-40 Manual Stage, Dovetail Stage, Rack and Pinion XY-axis, Range of Travel +/-12 mm Click to Get a Quote
